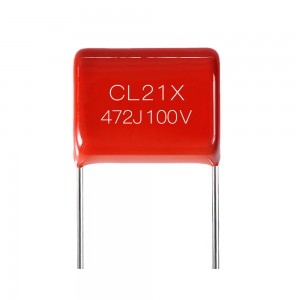

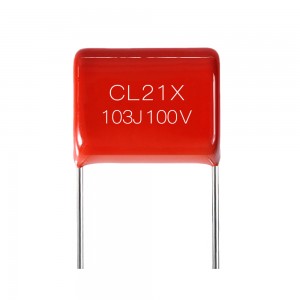

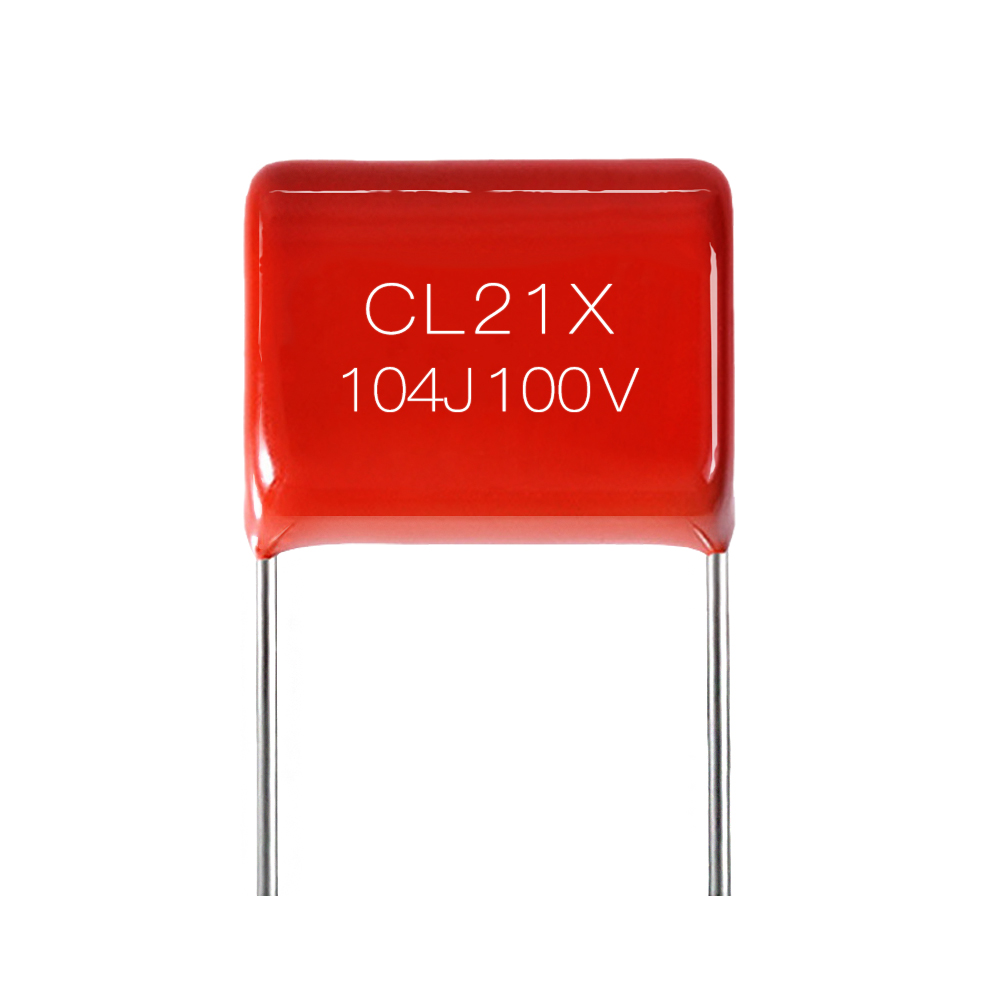

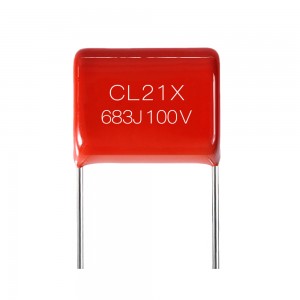

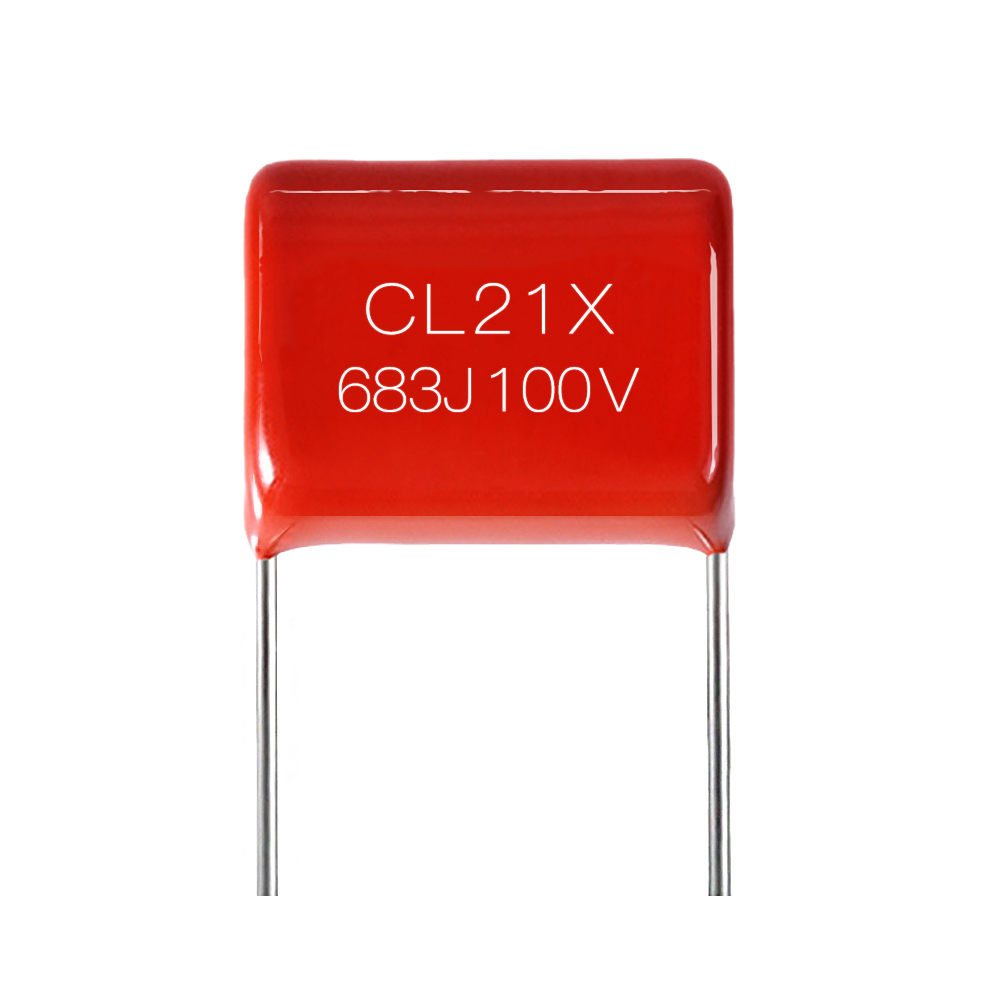

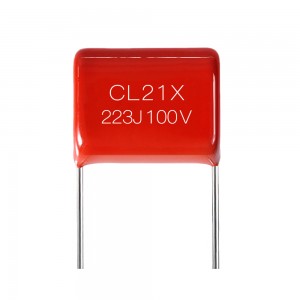

Mini Metallized Polyester Film Capacitor MEM (CL21X)
|
Technical requirements reference Standard |
GB/T 7332 (IEC 60384-2) |
|
Climatic Category |
55/105/21 |
|
Operating Temperature |
-55℃~105℃(+85℃~+105℃: decreasing factor1.25% per℃ for UR) |
|
Rated Voltage |
63V, 100V, 250V |
|
Capacitance Range |
0.001μF~1μF |
|
Capacitance Tolerance |
±5%(J), ±10%(K) |
|
Withstand Voltage |
1.5UR, 5sec |
|
Insulation Resistance(IR) |
Cn≤0.33μF, IR≥15000MΩ; Cn>0.33μF, RCn≥5000s at 100V, 20℃, 1min |
|
Dissipation Factor (tgδ) |
1% Max , at 1KHz and 20℃ |
Application Scenario
Charger
LED lights
Kettle
Rice cooker
Induction cooker
Power supply
Sweeper
Washing machine
Mini CL21X Application
It is suitable for DC and low pulse occasions, used in power amplifier, color TV, communication, power supply, LED drive and other circuits that require small size.
The JEC R&D department has many high-quality, highly educated and experienced software and hardware development and design engineer.
Certifications
Certification
In order to enhance competitiveness in the international market, Dongguan Zhixu Electronic also (JYH HSU(JEC))has passed the ISO9001-2015 quality management system, passed UL, ENEC, CQC certification, REACH and other product certifications, and obtained a number of patents.
About Us
About JYH HSU
Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) was established in 1988. It is a new modern enterprise specializing in the production and sales of film capacitors, X/Y safety capacitors, varistors/thermistors, and medium, high and low voltage ceramic capacitors. It is a new modern enterprise dedicated to R&D, production and sales of electronic components.
Plastic bag is the minimum packing. The quantity can be 100, 200, 300, 500 or 1000PCS. The label of the RoHS includes the product name, specification, quantity, lot No, manufacture date etc.
One inner box has N PCS bags
Inner box size (L*W*H)=23*30*30cm
Marking for RoHS AND SVHC
1. What is the function of film capacitors?
Film capacitors are generally used for high-frequency filtering, high-frequency bypass, first-order or second-order filter circuits.
Film capacitors have high insulation resistance and good heat resistance. It has self-healing and non-inductive properties. It has excellent high-frequency insulation performance. The capacitance and loss angle have nothing to do with frequency in a large frequency range, and change little with temperature, while the dielectric strength increases with the increase of temperature, which is difficult for other dielectric materials. Also film capacitors have high temperature resistance and low absorption coefficient.
2. How about the safety of film capacitors?
Because the conductive dielectric is coated on a transparent film or sandwiched between two films, the withstand voltage is very high, generally 600 volts DC, 300 volts AC. If there is no liquid, it will not cause a gas explosion, which is very safe.
