Modern life is inseparable from electronic devices like smartphones and computers. However, you may notice that these devices sometimes experience noise or interference signals, such as screen flickering, audio noise, slow operations, and so on. Often, these issues are caused by “electrical noise.”
What is “noise” in a power supply?
Not only do devices themselves generate interference, but the power supply can also introduce high-frequency noise and interference signals. These disturbances may come from:
- Unstable power grid voltage (e.g., sudden increases or decreases)
- Harmonics (irregular electrical signals in power systems)
- Electromagnetic interference from nearby electronic devices
These interferences can affect the normal operation of electronic devices, leading to degraded performance or even damage. To make the power supply “cleaner,” filtering is required to remove these noises.
What is power supply filtering?
Power supply filtering involves purifying the current before it enters the device by passing it through certain components to remove excess high-frequency noise or interference signals. This process can:
- Improve device stability
- Extend the lifespan of devices
- Enhance user experience
What role does a safety capacitor play here?

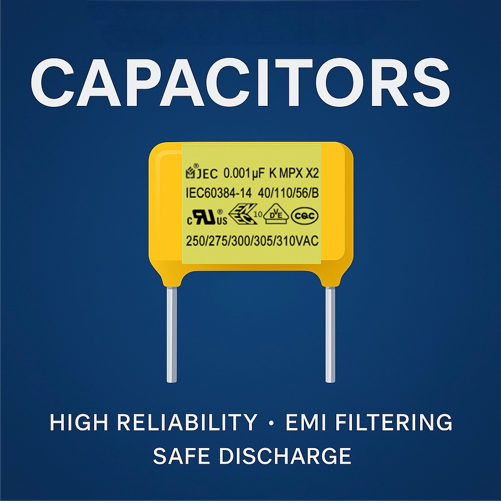

Among various electronic components, safety capacitors are crucial in power supply filtering. They not only effectively filter out noise but also have the following characteristics:
High safety:
After the power is turned off, it discharges quickly, preventing electric shock. Even if damaged, there is no leakage risk.
Strong anti-interference ability:
It can effectively filter out high-frequency noise, making the power supply “cleaner.”
Good electrical performance:
Large capacity, small size, able to withstand higher voltage and current, and conforms to international safety standards (hence the name “safety capacitor”).
How does it work?
Safety capacitors are usually connected in parallel at the power input, acting like an “acoustic wall” for the power supply. They can:
- Prevent high-frequency noise from entering the device
- Form a “low-pass filter” (allowing only low frequencies to pass, while blocking high frequencies)
- The larger the capacitor’s capacity and voltage rating, the better the filtering effect typically is.
Safety capacitors are safe, reliable, and highly resistant to interference, making them very suitable for power supply filtering. They protect electronic devices from noise interference, improve device performance, and extend their lifespan. When designing electronic products, selecting the right safety capacitor is a crucial step.
This article is provided by JYH HSU (JEC) Electronics. JEC is a research, development, production, and sales-oriented company specializing in manufacturing and selling various electronic components such as capacitors and resistors.
