OEM Metal Film Capacitor Suppliers - High Voltage Ceramic Capacitor/ Super High Voltage Ceramic Capacitor – JEC Detail:
1KV
2KV
3KV
6KV

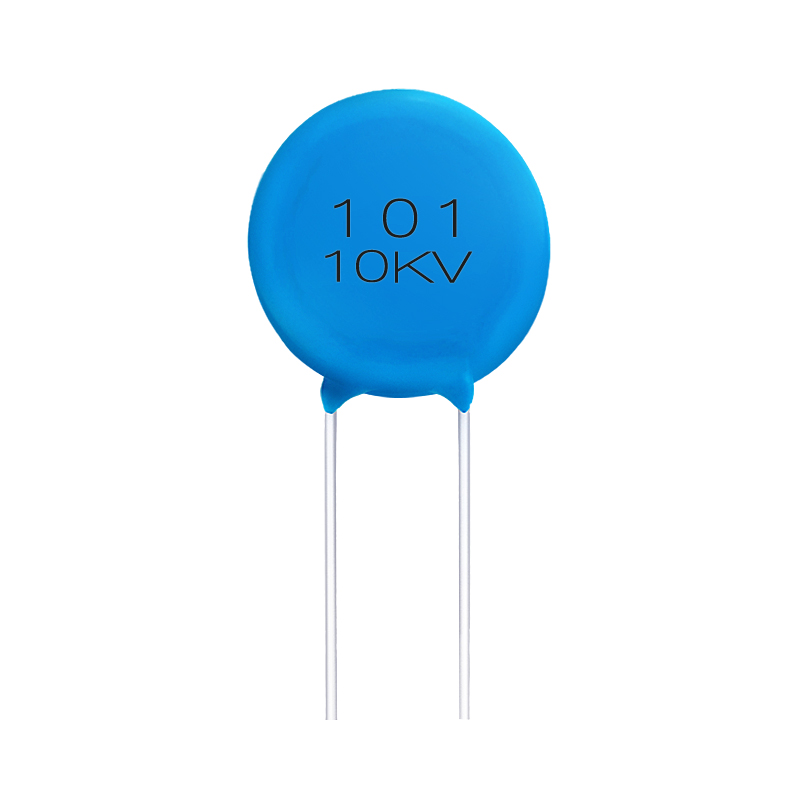

10KV
15KV
20KV
25KV
30KV
|
Specification Reference Standard |
GB/T 2693-2001 ; GB/T 5966-1996 |
|
Rated Voltage(UR) |
500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC |
|
Capacitance Range |
1pF to 100000pF |
|
Voltage Proof |
<500V,2.5UR ; ≥500V≤3KV,1.5UR+500V ; >3KV,1.2UR |
|
Capacitance Tolerance |
NPO±0.5pF(D)±5%(J) ; SL±5%(J)±10%(K),Y5P,Y5U±10%(K ) ; Y5U,Y5V±20%(M) |
|
Dissipation Factor (tgδ) |
C<30pF,Q≥400+20C ; C≥30pF,Q≥1000 ,Y5P,Y5U,Y5V:tgδ≤2.0% ; Y5P(Low loss type):tgδ≤0.5% ; Y5R:tgδ≤0.3% |
|
Insulation Resistance(IR) |
IR≥10000MΩ,1min,100VDC，IR≥4000MΩ,1min,100VDC |
|
Operating Temperature |
-25℃ to +85℃ |
|
Temperature Characteristic |
NPO,SL,Y5P,Y5U,Y5V |
|
Flame Retardant Epoxy |
UL94-V0 |
Application Scenario
Charger
LED lights
Kettle
Rice cooker
Induction cooker
Power supply
Sweeper
Washing machine
Applied in Various Fields.
Widely used in various electronic circuits and electronic complete machines, high and low voltage power supplies, controllers, industrial power supplies, motor filters, electronic ballasts, communication equipment, energy sources, computers and peripheral products, audio equipment, small home appliances, air conditioners , medical equipment, security and lighting and other consumer electronic products.
Certifications
Certification
We have passed ISO9001 and ISO14001 management certification. We manufacture products based on the GB standards and IEC standards. Our safety capacitors and varistors have passed CQC, VDE, CUL, KC, ENEC, CB and other authoritative certifications. All of our electronic components comply with ROHS, REACHSVHC, halogen and other environmental protection directives as well as EU environmental protection requirements.
About Us
Advance Workshop
We not only possess a number of automated production machines and automated testing machines but also have our own laboratory to test the performance and reliability of our products.
