Polypropylene Safety Capacitor X2 Factory

Short Description:


Product Detail

Product Tags

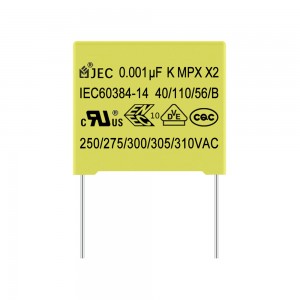

Product name X2 Safety CapacitorPolypropylene Film Capacitor
Type MPX (MKP)
Approval Standards IEC 60384-14
Features Non-inductive structureHigh moisture-resistance

Self-healing property

Flame retardant type (compliance with  UL94V-0)

Very small loss

Excellent frequency and temperature characteristics

High insulation resistance

Rated Voltage 250/275/300/305/310VAC
Application Widely used in the suppression of electromagnetic interference and power connection circuits, especially suitable for dangerous situations where the use of capacitors will not cause electric shock after failure.
Capacitance Range(uF) 0.001uF~2.2uF
Operating Temperature (℃) -40℃~105℃
Customization Accept customized content and provide sample services



Certification

Certification

Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) factories are ISO-9000 and ISO-14000 certified. JEC X2, Y1, Y2 capacitors and varistors have passed these certifications:

CQC (China)

VDE (Germany)

CUL (America/Canada)

KC (South Korea)

ENEC (EU)

CB (International Electrotechnical Commission)



All of our capacitors are in line with the EU ROHS directives and REACH regulations.



FAQ

Q: What are the materials of ceramic capacitors?
A: 3 types in total: Y5P, Y5U, Y5V.

Q: What is the capacitance range of X2 capacitors?
A: The capacitance range is 0.001uf-2.2uf
+Q: How many types of pitch distance are there for 0.1uf X2 capacitors?
A: There are two types: 10mm and 15mm, the regular one is 10mm.

Q: What is the voltage range of your high-voltage ceramic capacitors?
A: The voltage range of our high-voltage ceramic capacitor is 1KV-100KV.

 Q: What is dissipation factor (DF) of film capacitors?
 A: The DP of a capacitor is the power loss when AC is applied through the capacitor. This power is either absorbed by the dielectric material or internal/external resistance. Externally, the leads, pads, and solder all lead to an increase in resistance.
